WTS: BNIB Neumann KH80 DSP studio monitors pair

dutch

New member

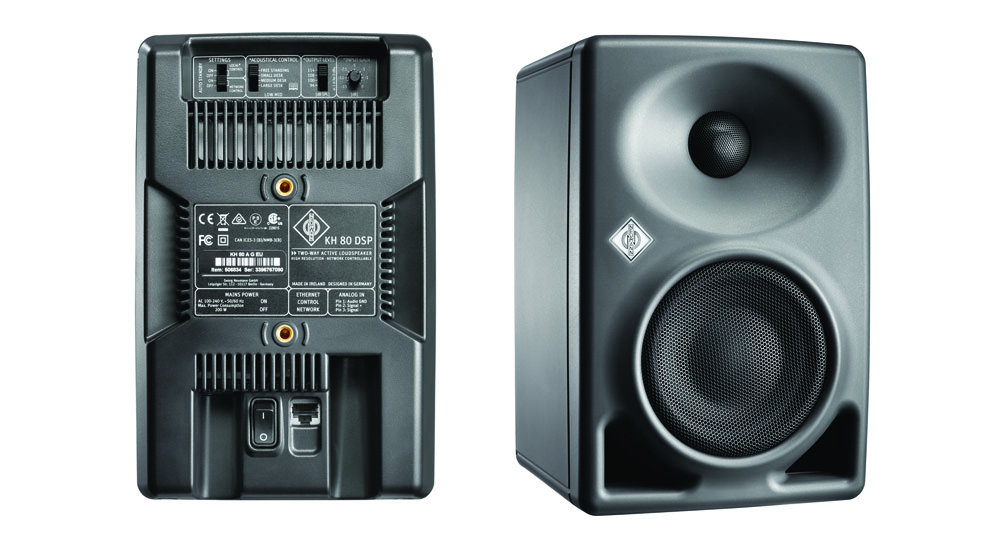

BNIB Neumann KH80 DSP studio monitors
Bought then realised will be going a passive route so never opened the box.
Asking just SGD1,400
SMS/whatsapp 9-1-2-eight-7-9-four-5

Amazing transparent studio monitors that can be DSP to fit your room.



Acoustical

-6 dB free field frequency response: 53 Hz … 22 kHz, ± 6 dB

-3 dB free field frequency response: 57 Hz … 21 kHz, ± 3 dB

Pass band free field frequency response: 59 Hz … 20 kHz, ± 2 dB

Self-generated noise (with input gain set to 100 dB for 0 dBu): < 20 dB(A) bei 10 cm

Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 102,8 / 108,8 dB SPL



Electronics

Input: XLR, analog electronically balanced

Controller design: Digital, active

Crossover frequency, slopes: 1.8 kHz, 48 dB/oct, 8th order

Bass amplifier, cont.(peak) output power*: 150 W (130 W)

Treble amplifier, cont.(peak) output power: 55 W (70 W)

Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz, with standby



Mechanics

Drivers: 100 mm (4"), 25 mm (1"), with integrated black metal grilles

Mounting points: 2 x M6 threaded inserts with 70 mm spacing on back panel

Product dimensions (height x width x depth), mm (inches): 233 x 154 x 194 mm (9 1/8" x 6" x 8 5/8")

Product weight: 3.5 kg (7 lbs 11 oz)
