Fender Lead II
- Thread starter ZiiopBoii
- Start date
thailoverboy
New member

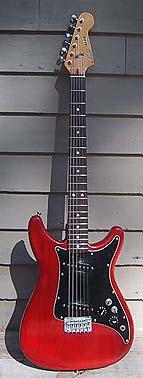

fender lead II produced bewteen 1979-1982
2 specially designed X-1 single coils, one at the neck, the other at the bridge.pickup model was also mounted in bridge position on the "Strat" model.pickups are wired in series. 3 position pickup selector switch (neck, neck and bridge, bridge), 2 position phase shift switch which operates only when both pickups are selected (middle position).master volume and tone control
